產(chǎn)品視頻

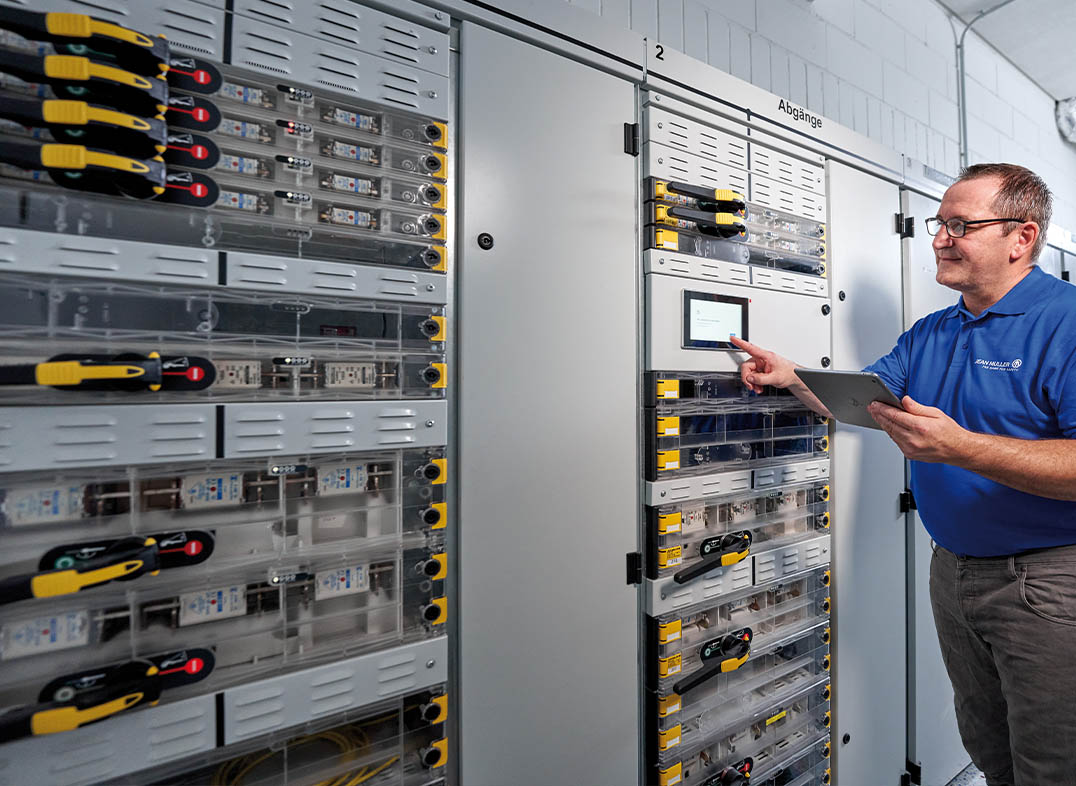

Installation in cabinet systems

Standardisation creates benefits – form 4b of the internal subdivision creates safety
–Same installation dimensions width / depth
–25mm grid for all device heights

System accessories
– Busbar supports
– Strip guides
– Covers for busbars, cable connections and blank panels
– Female connector for plug-in auxiliary circuits
– Switching interlock / assembly lock
– Cable separation covers
– Extract tool
Current transformer assembly

Current measurement made easy
— Retrofittable by customer
— Pre-assembled wiring harness for wiring to connector
— Contacting positively driven when plugging SASILplus
— Assembly options 1?pole, 3?pole, 4?pin (2 x in L1)
— Calibrated and certified for class 0.5 and 0.2
— Moving-iron instruments for instantaneous measuring
— Bimetalic instrument for average measurement
— Plug-in instruments
— Scales for vertical and horizontal mounting
Energy management with SASILplus

Continuous data acquisition and processing –
the base for the technology of tomorrow
Measuring sensor EE07
— Ongoing monitoring / measurement of all relevant current- and voltage-data in 3?phase power network
— Safe wiring with RJ-45 connectors
— Configurable via PLMasterplus or PLVario-NET

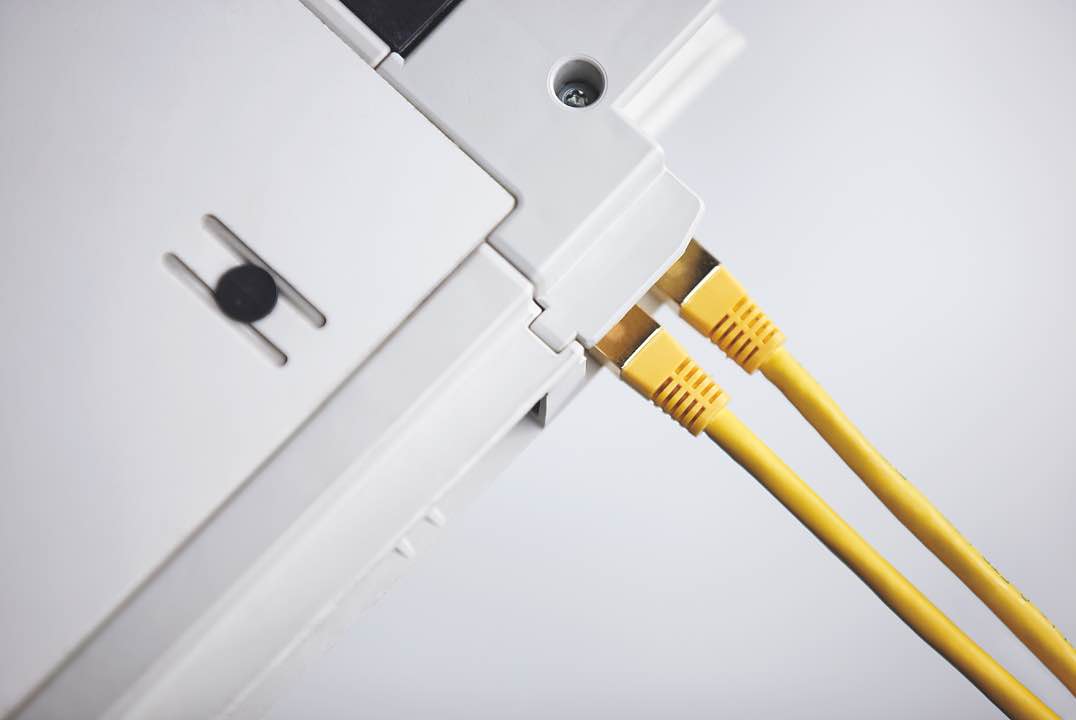

RJ-45 interface
– Data transmission from measuring sensor EE07
— Serial CAN-BUS communication

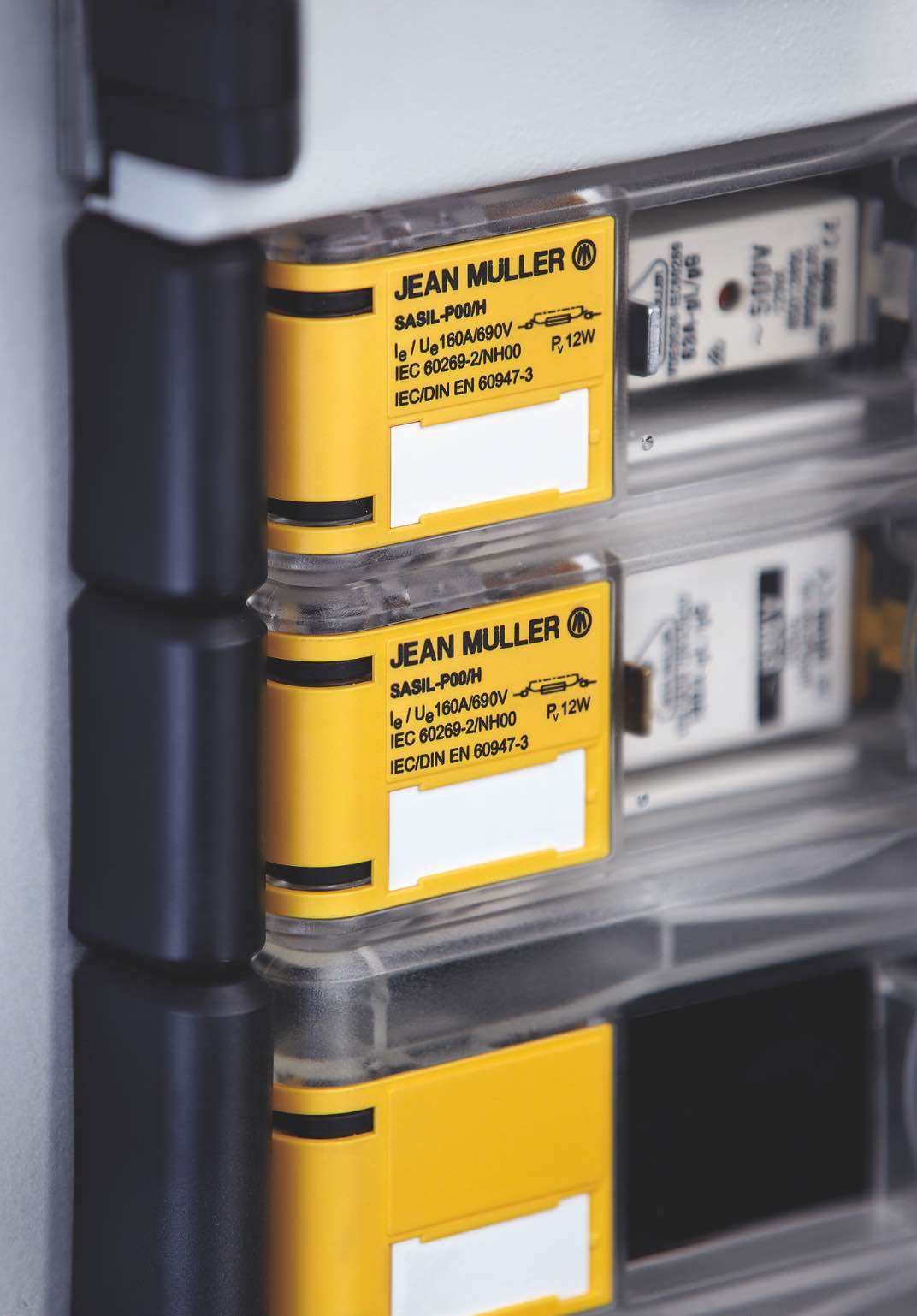

Fuse monitoring unit ES07
– Signaling of fuse-status by potential-free relay contacts
— Local display of fuse-status by LEDs (1 LED per phase)
— Internal power supply
— Operate delay for correct signaling

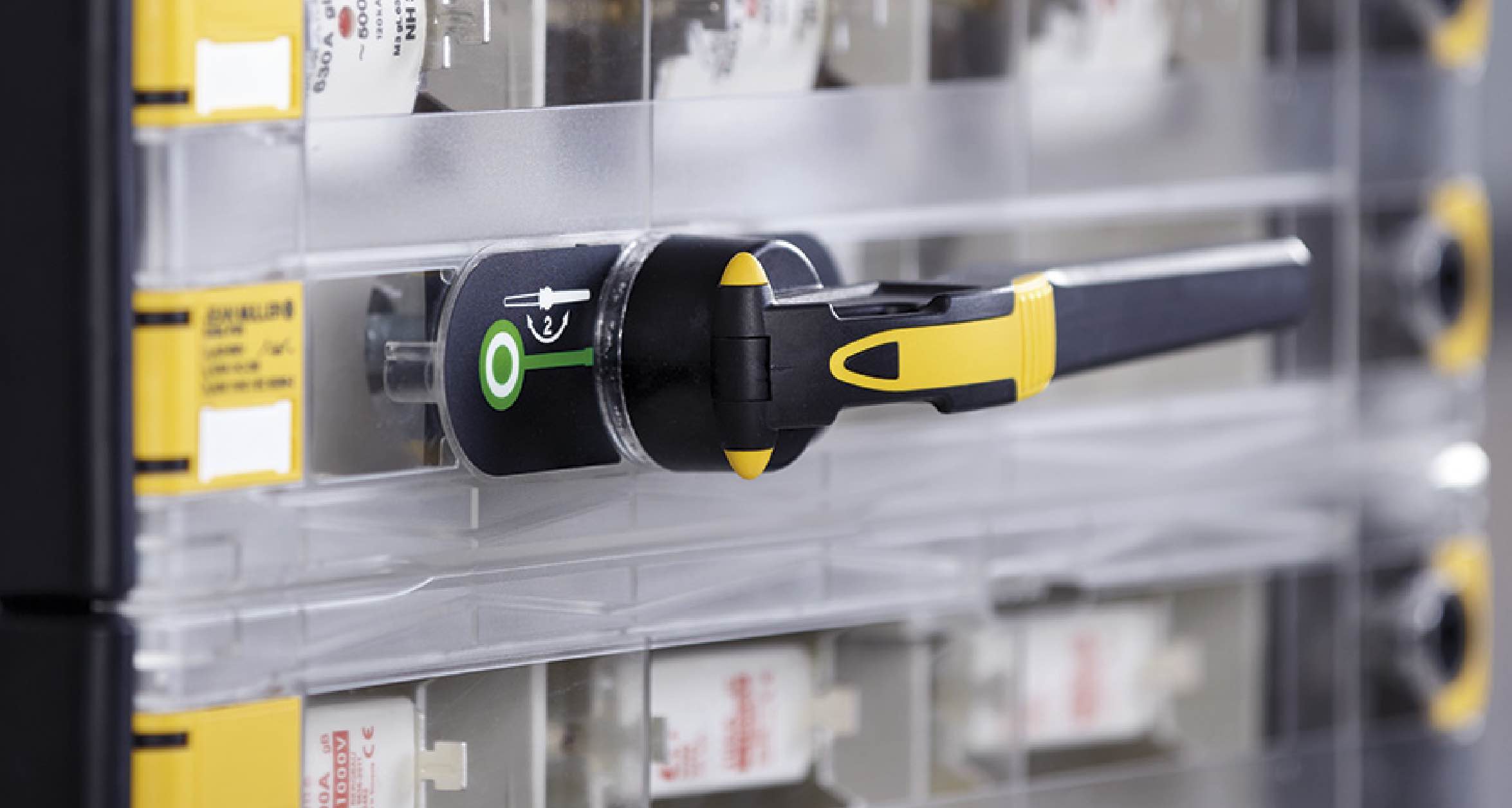

Double-break contact system

Performance and reliability by using a revolutionary new contact system
— User-independent snap-action mechanism
— High short-circuit strength up to 120kA
— High switching capacity up to AC23B
— Quadruple interruption
— Reliable isolation for fuse-replacement with quadruple interruption
— Low wear by pre contact system
SASILplus — busbar coupler

Safe disconnection of busbar systems with SASILplus busbar coupler
— NH3/630A — Module height 150mm
— Connection / disconnection of two 2- or 3?pole busbar systems 185mm
— Isolation of entire units or sections
— Safe separation of system by using busbar separation
— Optional: Total current measurement of all downstream outgoing units
Low power-loss power transmission with SASILplus 1000V

Special design 1000V – The solution for special applications
— Enables low power-loss power transmission over long distances
— Utilization category AC22B / 160A
— Easy design and construction due to standard equipment dimensions
SASILplus 2?pole for DC applications

SASILplus DC – the safe switching device for UPS Systems
— Usage in DC systems up to 440V DC
— Busbar system 2 x 185mm = 370mm
— Utilization category DC-22B/220V, DC-21B/440V
— Rated conditional short circuit current 35kA
— Current measurement with shunt
Automated standby power supply with SASILplus MOT

Remote control with SASILplus MOT
— Acquisition and change of switching state via remote data transmission from the control station
— Automated or semi-automated network control
— LEDs for fuse-monitoring, switch-position, status display
— Local control possible
— Technical parameters similar to standard devices
— Combination with manually operated SASILplus disconnectors possible
— Operating buttons can be locked with up to 3 padlocks
— Operating-mode selector switch
— Remote control
— Local control
— Locked
— Manual operation in case power fail of the control voltage by means of emergency function
SASILplus double pluggable

Benefits of the double plugable SASILplus
— Highest availability
— Fully pluggable (in- and outgoing) main- and control circuit at the smallest room
— Removable part according DIN EN 61439–1:2012–06
— Same dimensions as SASILplus Standard
— No cable disconnecting necessary
— IP2x protection from all sides
— Compatible with SASILplus Standard accessories (excluding EE07)
— Combination with SASILplus Standard possible
— Same technical data as SASILplus Standard
